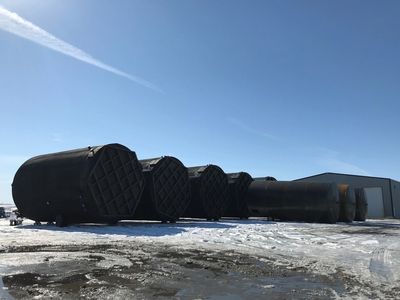

2,000 BBL TANK Dimensions can be modified
Standard
Tank Built & Tested to API 650 Specs.
Floor ¼" (6.35 mm) Plate
First Shell ¼" (6.35 mm) Plate
Shell 3/16" (4.76 mm) Plate
Roof 3/16" (4.76 mm) Plate
4 - hauling pads
24" x 48" Manway c/w ¼" (6.35 mm) cover, gasket, bolts & nuts
8" diameter sour thief hatch (Marshawk 16 oz pressure spring & .4oz vacuum spring)
2 - Lifting lugs
1 - Tail lug
External SSPC-SP6 Brush Blast & paint
Testing
Tank is air/soap leak tested to 24oz (16oz maximum design pressure x 1.5 on all tanks) (API 650)
Materials
Plate: CSA G40.21M-300W (CSA G40.21-44W) or equivalent
Couplings: screwed, A-105, 3000# F.S. welded, A-234-WPB
Flanges: A-105, 150# RFSO
Structural: A-36 or A-53-B ERW pipe
Pipe: nozzles and Fire tube A-106-B pipe, internal risers A-53-B ERW pipe
All tanks are available with
Internal Coating with Devoe 253 or Enviroline 375
Urethane Spray Foam Insulation
Heaters (Fire Tubes / Envirovaults / Steam Coils)
Custom ladders, platforms & catwalks
